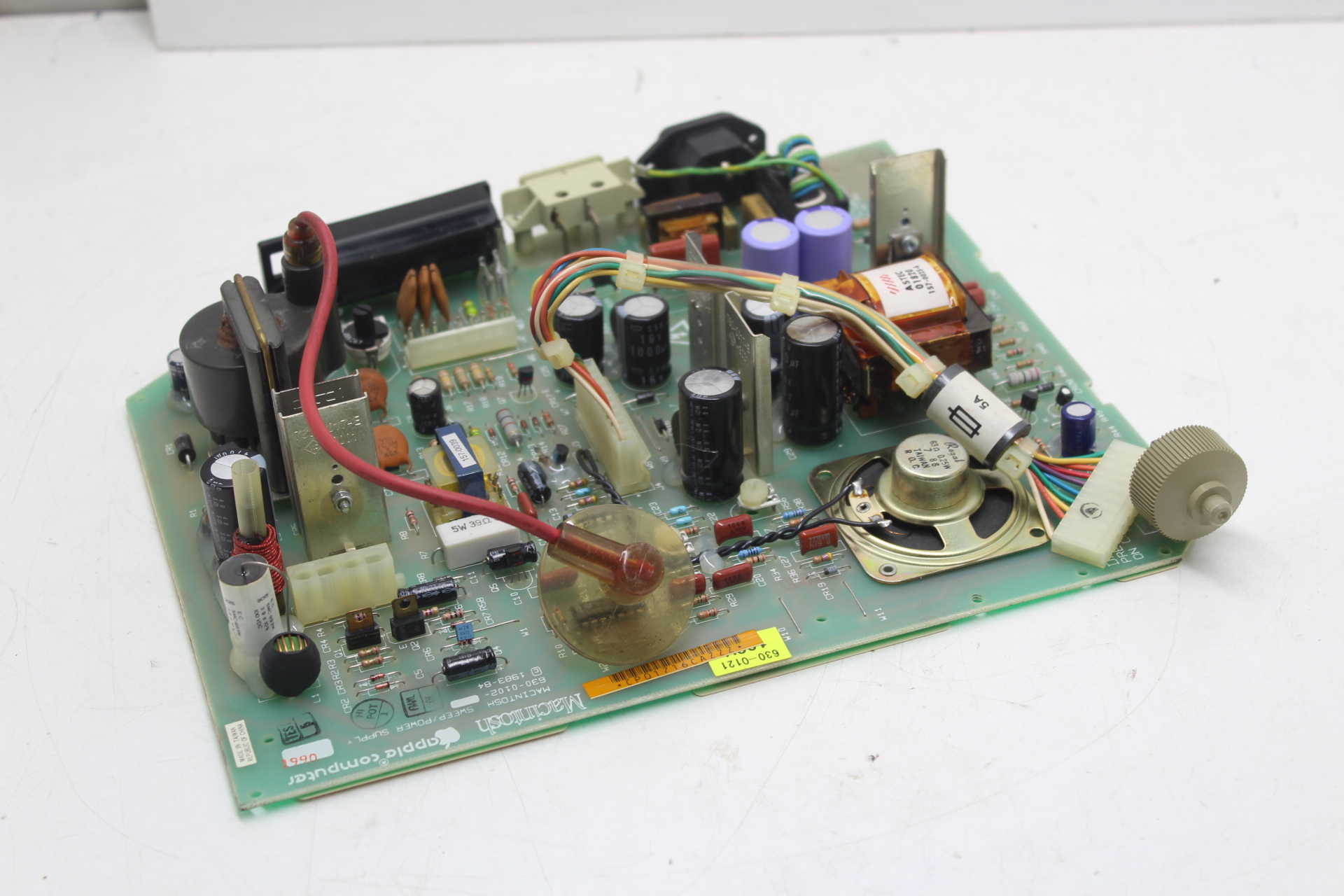

Apple Macintosh 128k 512k Plus Power Supply Analog Board 1983 – Parts/Repair

$65.00

Came from a batch of Macintosh Plus spare parts. Was marked as  »burned-out ». Not completely sure of issue but board and nearly all components appear to be OK.

Q8 and CR18 appear to be shorted. Capacitors look OK. Fuse OK. Horizontal output transistor Q3 (BU406) appears to have a short between emitter and base. I have not tested the flyback transformer as I do not have the right equipment.

1 en stock

Add to Cart
Apple Macintosh 128k 512k Plus Power Supply Analog Board 1983 - Parts/Repair
Apple Macintosh 128k 512k Plus Power Supply Analog Board 1983 - Parts/Repair
$65.00

Condition : Non-fonctionnel

Cet item est situé à notre emplacement HOCHELAGA

3811 sainte-catherine est Montréal H1W2G3

438-506-2240

HEURES D'OUVERTURE

Lundi au vendredi 10h-18h

Samedi 12h-17h

Informations complémentaires

Poids1.5 kg
Dimensions40 × 35 × 15 cm
